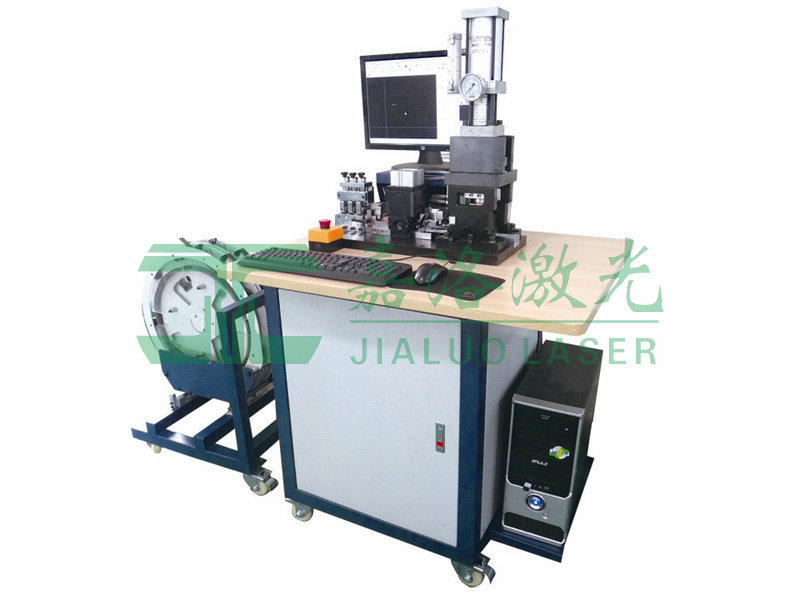

Category: Auto cutting machine
Brand: Jialuolaser
Model: ACT-II-F
Views: 2351
Scope:
Machinery size | 1800×850×1550mm |
Machinery weight | 150kg |
Supply power | 220V AC 1PH 50Hz 1KW |
Air-pressure pump | ≥6kg/cm2 pressure, diameter 10mm of gas tube |
Software operation platform | Microsoft Windows 2000﹑XP﹑Vista |
Support language | Chinese﹑English |
Support input files format | DXF﹑AI |
Support output files format | DXF、JLD |
Blades highness scope | 23.8mm |
Blades thickness scope | 0.71mm |
Cutting shape(att.) | Lipping 23.8mm(Att), straight line |
Notching(att.) | Width 6mm high 18.8mm |
Min gap width of the perforating | 1mm |
Att: It would be as per clients require to make the size | |
1.Automatic production,no need man operation,esay to use it
2.There are 2 bobbin crease rules,you can change the material speedily
3.Save the time,power and materials,also can make 4 bobbin crease rules
4.Provided 2 cutting position , it can cut and bridge,the height of bridges can be easy changed, and aslo expanding cutting position and custom-made dies by the customer
