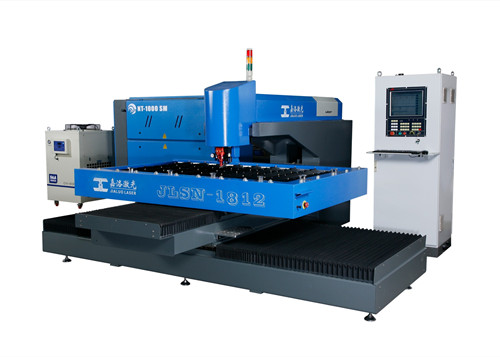

產品名稱：JLSN1812-G2500-F激光刀模切割機
所屬類別：激光刀模切割機
產品品牌：嘉洛激光
產品型號：JLSN1812-G2500-F
瀏覽次數：597 次
適用范圍：
l 激光刀模切割機
l LASER DIEBOARD CUTTING MACHINE
型號：JLSN1812-G2500-F
MODEL: JLSN1812-G2500-F
性能Functions:
1、固定光路（激光頭固定不動，板材運動），激光光程固定，保證切縫恒定。
Fixed laser light road (Laser head is fixed, cutting materials move); laser path is fixed, guarantee the cutting gap is same.
2、進口研磨級絲桿傳動，精度和壽命遠超普通轉造級絲桿。
Imported high precision grounded ballscrew, precision and used life is higher than rolled ballscrew.
3、高品質直線導軌2年免維護，簡化維護工作量。
High quality linear guideway need not maintenance for 2 years; predigest work time of maintenance
4、高強度穩定機床，十字滑臺結構，重約1.7噸，長年工作不變形不彎曲。
High strength and stabilization machine body, cross slipway structure, weight about 1.7T.
5、電子隨動激光頭切割系統，自動適應材料彎曲及厚薄的高低不平，保證切縫一致。
Electronic floating laser head cutting system, Automatic suitable for bend, different thickness and height materials, guarantee cutting gap all same.
6、獨立防塵機柜，密封等級IP54，保證機床控制系統穩定運行。
Autocephaly dustproof machine control system, airproof grade: IP54, guarantee machine control system working stabilization.
7、德國進口數控系統，集成激光切割專用能量控制功能，機床操作功能，激光器操作功能，專家切割工藝庫等，高速高精度及高穩定性，實現完美切縫。
German digital control system, included laser cutting power control, machine body operation, laser system operation and expert cutting technology function etc; high speed, high precision and high stabilization, realize perfect laser cutting gap.
8、激光切割頭采用抽屜式聚焦鏡座，更換、清潔鏡片非常方便。
Laser head adopt drawer style for lens; it is very convenient for replacing and cleaning.
參數Parameters:
激光器種類和功率：2500瓦沃福激光發生器
Laser type: 2500W wolf laser system.
工作行程: 1800*1200毫米
Working area: 1800*1200MM
光路形式： 固定光路（激光切割頭固定，板材運動）
Laser line path: Fixed laser line path (the laser head fixed, the machine body moved)
傳動方式： 進口研磨級絲桿
Drive style: Imported high precision grounded ballscrew
切割材料及厚度：木板6-9-15-18-22mm、PVC膠板、亞克力和8mm以內碳鋼
Cutting material and thickness: 6-9-15-18-22mm plywood, PVC board, acrylics and less than 8mm carbon steel materials
環境溫度： 5度-35度
Environment temperature: 5℃-35℃
冷卻水溫度： 5度-30度
Cooling water temperature: 5℃-30℃
冷卻水: 無雜質純凈水
Cooling water: Pure water
保護氣體： 干燥無油壓縮空氣
Protection gas: non-oil and dry air.
相對濕度： ≤80%
Relatively humidity: ≤80%
供電電源： 三相380V±5％、50/60HZ、60KVA
Supply power: Three phase 380V±5% 50/60HZ、50KVA
切割速度： 0-16000mm/min軟件設定（18mm木板；3200mm/min）
Cutting speed: 0-16000mm/min (software setting, 18mm plywood: 3200mm/min)
定位精度： 0.025mm/1250
Cutting tolerance: 0.025mm/1250
重復精度： ≤0.01mm
Repeat tolerance: ≤0.01mm
數控面板： 15寸LCD,激光切割數控專用面板
Operation control panel: 15’ LCD, professional control panel of laser cutting system.
傳輸端口： RS232網線接口/USB連接
Transmission port: RS232 Net line transmission/USD connection
控制系統： 德國進口PA8000數控系統/國內激光切割專業系統.
Control software: German PA8000 digital laser control system/Chinese professional digital laser control system.
