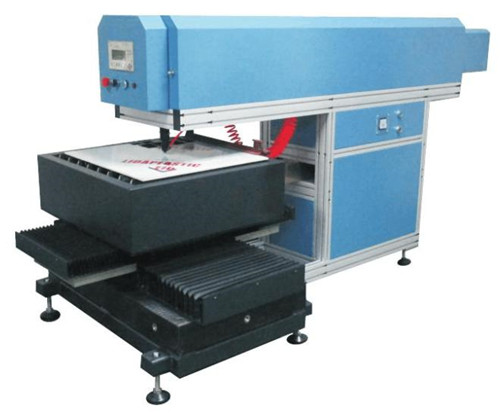

產品名稱：JLSD8060-100W-F小功率激光刀模切割機（PVC專用）
所屬類別：激光刀模切割機
產品品牌：嘉洛激光
產品型號：JLSD8060-100W-F
瀏覽次數：523 次
適用范圍：專業用于PVC膠板、12mm以下(包括12mm)木板、亞克力板、紙板割樣、皮革布料開料等非金屬材料的切割
l 小功率激光刀模切割機（PVC專用）
l SMALL POWER LASER DIEBOARD CUTTING MACHINE(FOR PVC DIE)
型號：JLSD8060-100W-F
MODEL: JLSD8060-100W-F
特點：Features:
●大理石底座平臺加鑄造機身，永不變形；
Marble base platform plus casting body, never deformation;
●進口雙螺母滾珠絲桿傳動；
Imported precision ball bearing lead screw;
●一次折射，調光非常簡易；
One time refraction, dimming is very simple;
●誤差保證0.02mm以內；
Tolerance less than 0.02mm
●脫機控制單元，控制盒帶LED液晶顯示操作面板，可以直接在液晶顯示屏上修改機械與切割參數，64M的圖形數據貯存空間充分滿足大文件的需要；
Offline control unit, the control box with LED LCD display control panel, you can directly modify the machine on the LCD screen and cutting parameters, 64M graphics data storage space to fully meet the needs of large files
●專業的刀?？刂栖浖叭诵曰牡赌D形處理系統；
Professional die control software and user-friendly die graphics processing system
●激光頭固定，煙霧排放集中，排煙效果佳，腐蝕最??；
Laser head fixed, smoke emission concentration, smoke effect is good, corrosion minimum;
●電氣控制部分獨立安裝，不受煙霧腐蝕；
Electrical control part of the independent installation, free from smoke corrosion;
適用范圍：Scope of application:
專業用于PVC膠板、12mm以下(包括12mm)木板、亞克力板、紙板割樣、皮革布料開料等非金屬材料的切割
Professional for the PVC sheet, 12mm (including 12mm) wood, acrylic board, cardboard cutting, leather materials, such as cutting the opening of non-metallic materials
機器參數machine parameter:
機器型號 Machine model | JLSD8060-100W-F |
激光功率 Laser power | 100W |
激光器種類 Laser source type | 國產CO2激光器 CO2 Laser tube |
激光波長： Laser wavelength | 10.6um |
工作行程 Working area | 800mm*600mm |
傳動方式 Transmission | X Y雙方向進口雙螺母滾珠絲桿傳動 Motive transmission by precision ball bearing lead screw for two direction. |
切割精度 Cutting Precision | 0.02mm |
定位精度 Positioning precision | ＜0.0１mm |
光路形式 Light path | 固定光路 Fixed light path |
板材固定方式 Material fixed way | 柵條支撐加氣動夾板 Grid support plus pneumatic splint |
切割材料厚度 Cutting thickness | 最大35mm Max 35mm |
切割速度 Cutting speed | 最快5m/每分鐘 Max 5m/min |
冷卻水水溫 Cooling water degree | 5℃~30℃ |
冷卻水 Cooling water | 無雜質純凈水 Pure water |
配合氣體 Protection gas | 干燥無油壓縮空氣 Non-oiled air with drying |
相對濕度 Relatively humidity | ≤80％ |
電力需求 Supply power | 220V±5％ 50Hz 10A |
數控面板 Operation control | LED顯示屏，中英文操作菜單，輕觸按鍵 LED, English and Chinese operation menu |
傳輸端口 Transmission port | 脫機控制單元+USB連接、設備可以單獨擺放 Off-line control unit + USB connection, the device can be placed separately |
指令系統 Instruction system | 國際標準：支持DXF、PLT、AI等多種文件格式，支持CAD直接輸出文件切割 International standard: support DXF, PLT, AI and other file formats, support for CAD direct output file cutting |
操控軟件 Control software | 嘉洛激光精密激光切割系統（中英文版） Jialuo laser cutting control system(EN & Chinese version) |
外型尺寸 Machine size | 長*寬*高= 2500*1160*1360mm L*W*H= 2500*1160*1360mm |
注：此激光機僅用于激光刀模制作，其他特殊用途須經機器供應商同意。
Note：This laser cutting machine just can use for die making, if customer want to use for another using, it must confirm with supplier.
