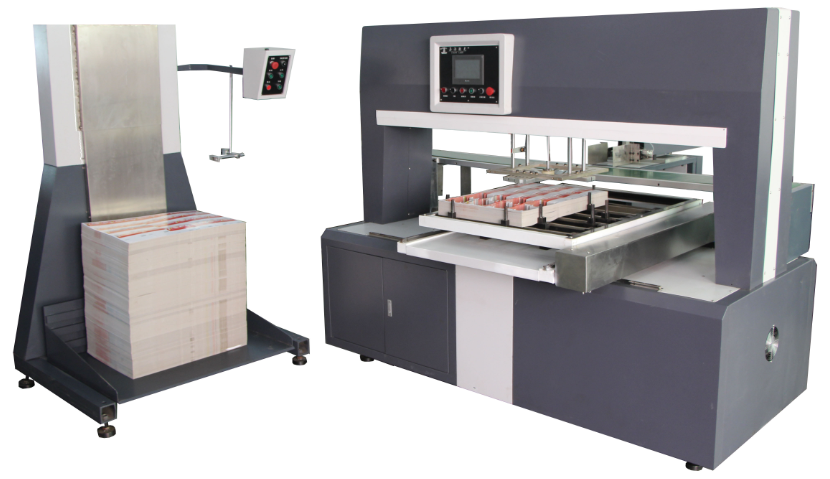

Automatic blanking machine
Strippingwork from manual to automatic, 35years experiences in die board making, diecutting technical supporting for printing and packing and stripping technicalresearching of Jialuo laser, Automatic blanking machine was born at ShenzhenJialuo Laser in 2014;
1. It tiein high quality printing machine and high speed automatic die cutting machine;
2. Avoidthe quality problem by manual stripping; humanized design, cleanand tidy working environment, simple and easy operation
3. Benefits for customers, making the intensity laborand bore stripping working to become automatic;
Tech. Data:
1 | Hydraulic power | Max output power 3tons, output power:1-3tons | |
2 | Platform | Across form，the head fixed, the across form driver by X and Y axis move, working area: 1200x800mm;the working area by the software and hardware positioning switch curb。 | |
3 | Transmission | Using the strong motive power and no need up keep’s step motor，motive transmission by precision ball bearing lead screw finished. | |
4 | Measurement | Multi-direction following. the electronic and light installation’s calibration precision seals designs and dust-proof | |
5 | Security | The hand does not touch the working place of machine head when working, so it is very safety | |
6 | Speed | Working speed 18-24times/min, and the speed according to the worker. | |
7 | Weight | 1.2tons | |
8 | Size | 2400mm * 3000mm（outspread) | |
9 | Working area | 1020mm*720mm | |
10 | Quantity | Working paper 120g-1800g,the thickness is 6-9cm(150-250PCS) for one time | |
11 | Operating system | PLD, the computer control | |
12 | Power supply | 380V，50Hz Max 6.8KW/hour | |
13 | Conditi-on | Environment | working inter space: 3000mm×3000mm, about 9 square meter, airiness |
Assistant machine | More than 3KW air compressor | ||
Characteristic:
1. Noneed stripping rule for die, the efficient of die cutting can be increase10%-30%;
2. Productcan not be bend and it is easy tidy up when stripping; increase efficiency of folding and pasting machine , packing machine; so the efficiency ofwhole working procedure can increase more;
3. Thestripping speed faster, one time can strip the thickness of paper is 60-90mm (thepaper thickness, layout, nick different, the total thickness stripping islittle different), for example: 60mm thickness/one time, it is about 200sheet,one minute =200sheet; the stripping quantity for one hour is 60*200=12000/sheet
4. Highquality stripping, the product can not be bend, hurt and broken etc;
5. Itcan suitable for cigarette box, wine box, medicine box, Cosmetic box, card, and label etc
6. Reducethe space and time for transfer
7. Easyto change product and adjust it , it only need 5-10 minute;
