Category: Laser cutting machine
Brand: Jialuolaser
Model: JLSD-I -F
Views: 2643
Scope:

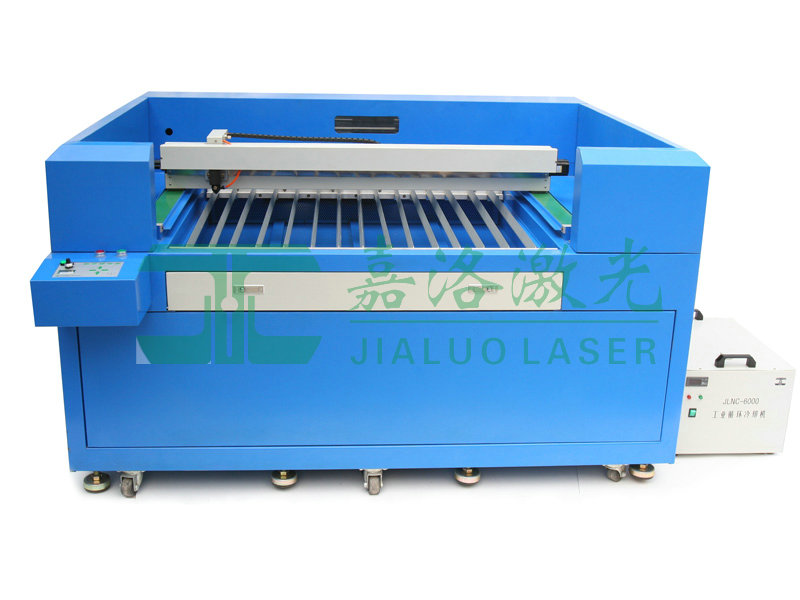

JLSD-I precision screw machine
JLSD-I performance parameters and technical indicators | |||
Laser power | 80/100/130W | ||
Laser type | co2 laser tube | ||
Light path | Flight path (table did not move, laser head move) | ||
Drive style | Import precision ball screw drive, screw and guide rail from Taiwan. | ||
Applicable process material | 6-9-12-15 mm board, PVC plastic board, acrylic, fabric, leather and other non-metal materials | ||
Laser power | Maximum output power 130 w | ||
Working area | 600 mm 800*500mm , 1070*760mm | ||
Cutting speed | 0-3000 - mm/min software Settings (18 mm board: 450 mm/min) | ||
Operation control | LCD , EN&Chinese operation menu | ||
Transmission port | DXF/PLTUSB connection, off-line operation, equip with high stored | ||
Command system | International standard: compatible with the CDR, CAD and other software | Control software
| Jialuolaser cutting&Engrave control system( EN&Chinese version) |
Cutting accuracy
| ±0.05mm | Rep-site accuracy | ±0.02mm |
Cooling water degrees | 5℃-30℃ | Surrounding degrees | 5℃- 35℃ |
Cooling water | Pure water | Supply Power | Single 220 v ± 5% 50HZ 10A |
Protection gas | Dry and oil free air | Relative humidity | ≤80% |
1,Flight path (table did not move, laser head move)
2,Double directions transmission by the imported accurate ball screw shafts(more accurate),the dieboard's tolerance is ±0.05mm.
3,The laser beam will be vertical and even; cutting one meter cost about 2 minutes,cutting one die-board of 8 normal boxes only need half an hour
4, Save power and cost less,single phase 220 voltage,use power about 3KW/H(400W power);700W power machine use power about 10 KM.H
5, Can't out of shape and twist out of shape for long time wording;
6,No need subsidiary air for working (300W power type) 700W power type uses the air about RMB2000/Y
7, When you start the machine ,you can use the machine at once,no need wait;
8,Easy focus and operation,you can operate it soon after simple training
