Category: Laser cutting machine
Brand: Jialuolaser
Model: JLL400-F
Views: 3336
Scope:

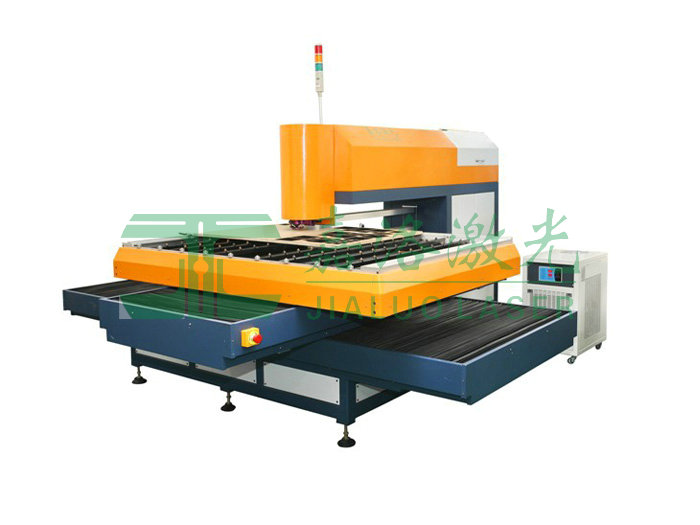

JLL400 -F laser cutting machine
Laser type | co2 laser tube | ||
Working area | 1800*1200MM | ||
Light path | Fixed optical path (laser head fixed , plate move) | ||
Drive style | Double direction import precision ball screw transmission | ||
Applicable process material | Acrylics plastic products 6-9- 15- 18- 22 mm, PVC plastic board, acrylic, etc. Nonmetal materials | ||
Laser power | Maximum output power 400 w | ||
Cutting speed | 0-3000 - mm/min software Settings (18 mm board: 450 mm/min) | ||
Control panel | LCD; EN&Chinese operation menu | ||
Transmission port | USB connection; off-line operation,equip high stored; DXF/PLT | ||
Instruction system | International standard: compatible with the CDR, CAD and other software | ||
Control software | Jialuo laser Cutting&Engrave control system(EN&Chinese version) | ||
Cooling water degrees | 5℃-30℃ | Surrounding degrees | 5 ℃ to 35 ℃ |
Cooling water | pure water | Protection gas | Non-oil airwith drying |
Cutting precision | ±0.05mm | Rep-site precision | ±0.02mm |
Relative humidity | ≤80% | size | 3000 mm * 3000 mm (stretch) |
Power supply | Single 220 v ± 5% 50 HZ 10 A | weight | 1.5 Tons |
Work space | 5000mm*5000mm | Work area(Stretch) | 2500*3000MM |
1,Fixed light road(laser head fixed,the cutting materials move)
2,Double directions transmission by the imported accurate ball screw shafts(more accurate),the dieboard's tolerance is ±0.05mm.
3,One time can cut 18--22mm,the laser beam will be vertical and even; cutting one meter cost about 2 minutes,cutting one die-board of 8 normal boxes only need half an hour
4, Save power and cost less,single phase 220 voltage,use power about 3KW/H(400W power);700W power machine use power about 10 KM.H
5, Can't out of shape and twist out of shape for long time wording;
6,No need subsidiary air for working (300W power type) 700W power type uses the air about RMB2000/Y
7, When you start the machine ,you can use the machine at once,no need wait;
8,Easy focus and operation,you can operate it soon after simple training
